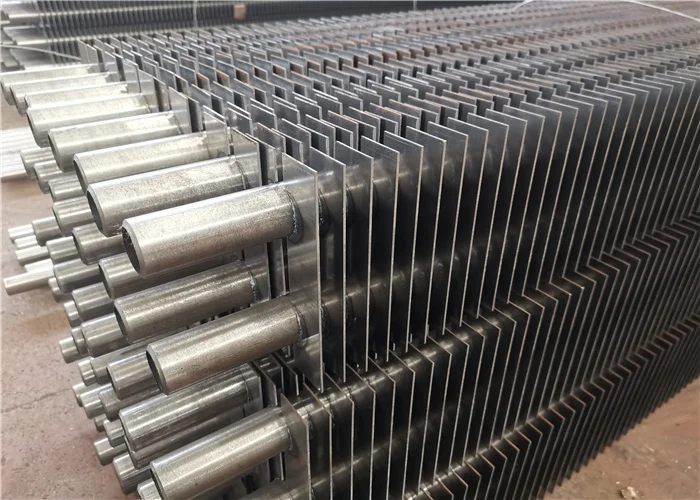

High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty

Place of Origin : Zhangjiagang,China

Brand Name : HDB Boiler

Certification : ISO9001,ASME, EN

MOQ : 1

Price : $1,200-1,500

Weight : 3000 kg

Base Tube O.D : 25.4 ~1600 mm

Base Tube Thickness : 2.5 ~ 40 mm

Fin Height : 0.5 ~ 20.0 mm

Fin Thickness : 0.5 ~ 3.0 mm

Fin Pitch : 5 ~ 25.4 mm

Material : Carbon Steel, Alloy Steel, Stainless Steel

Length : 0 < L < 12000 mm

Base Pipe Type : Welded or Seamless

Pressure Type : Low / High Pressure

Surface Treatment : Painted

Fuel Type : Biomass, fossil fuel

Heat Transfer Efficiency : High

Flue Gas Resistance : Designed for small space

Self-cleaning Properties : Superior

Contact Now

Product Description
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.

Detail

In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.

Structure

Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Specification
Item
Base Tube O.D
(mm)
Base Tube Thickness (mm)
Fin Height (mm)
Fin thickness (mm)
Fin Pitch (mm)
Range
25.4 ~1600 mm
2.5 ~ 40 mm
0.5 ~ 20.0 mm
0.5 ~3.0 mm
5 ~ 25.4 mm
Material
Carbon Steel,Alloy Steel,Stainless Steel
Length
0＜L＜12000mm
Product
H-fin Tube
Base Pipe
Welded or Seamless
Material
carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys.
Application
H economizer, H evaporator, H superheater, H air heater and etc.
Company Profile
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
Zhangjiagang Hua Dong Boiler Co., Ltd.，
founded in 1985, is an enterprise specializing in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers and related heating surface components in China. Hua Dong Boiler provides clients with integrated services from
design, manufacturing to installation and maintenance.
Our Advantages
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty

38 years experience in industry research, development and manufacturing with sufficient production capacity.

High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
Quality Control
1. Impact test and Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode
3. X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler
4. Hydraulic test report: ensure the standard working pressure and safety
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
Complete quality assurance and control system which certified according to the International Quality Standard.
Establish a quality assurance system faithfully in compliance with the national regulations, standards and other technical requirements. The quality of process and products is 100% under control. Ensured all the products are manufactured faithfully in accordance with the contract requirements, national regulations and standards by stringent inspection and test over materials and products during manufacturing.
Certifications
Owns verification certificates:
ISO 9001: 2015; CE certificate; EN ISO 3834-2; ASME certificate with "S", "U" and "NB" stamps, etc.
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
Global Sales
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
High Heat Transfer Efficiency Boiler Fin Tube with Superior Self-Cleaning Properties and 5 Years Warranty
FAQ
Q1: How long is the warranty period?
We provide 18 months warranty for all spare parts(exclude fragile parts).

Q2: How can we guarantee quality?
1) All machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.

Q3: What can you buy from us?
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall,
Boiler manifold headers and other pressure spare parts.

Q4: What kind of service do you provide?
Before sales:
Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.

After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash;
Language Spoken:English,Chinese

Q5: Are you a factory or trading company, where are you located？
We are a factory, just 130km(2 hours by car) away from Shanghai Airport.
We offer pickup service at Shanghai for your visit.
